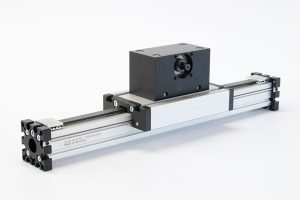

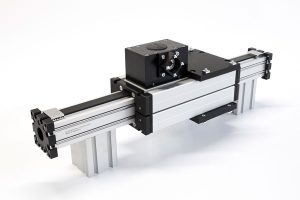

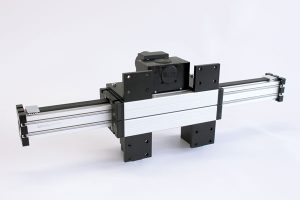

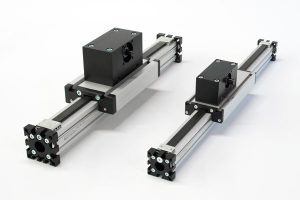

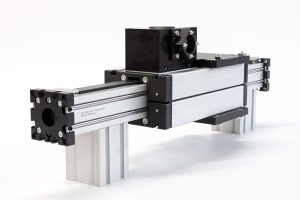

ELSZ
- belt drive
- Omega system
- vertical installation position
Function:
This linear unit consists of an aluminium square profile with hardened steel guide rods. The carriage, which has internal linear ball bearings that can be adjusted free of play, is driven along the guide rods by a timing belt. The pulley has maintenance-free ball bearings. Belt tension can be readjusted by a simple tensioning device in one of the end blocks. This device can also be used for symmetrical adjustment of two or more linear units running parallel.
Alternatively with widened belt available.
As required. Max. length without joints 6.000 mm.
By T-slots.
By T-slots or tapped holes in the bearing blocks, or mounting sets.
HTD with steel reinforcement, no backlash when changing direction.
Repeatability: ± 0,1 mm.
