DSZS
- Belt drive
- Independent installation position
- Omega system
- Lifting system
Function:

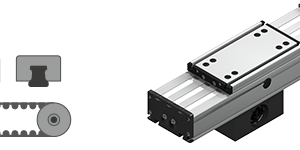

This unit consists of a rectangular aluminium profile with 2 integrated rail guidess. The carriage is moved by a belt drive. An innovation is that the toothed belt is diverted within a drive block positioned centrically. The result is an enormous compactness with regard to the overall system length. The toothed drive pulley has a coupling claw in the standard version. Belt tension can be readjusted by a simple screw adjustment device in the carriage. This device can also be used for symmetrical adjustment of two or more linear units running parallel. The openings of the guide body are sealed with 3 stainless steel cover bands to protect the guide from splash water and dust. Alternatively, the opening can also delivered without cover bands.
As required, max. length 6.000 mm without joints.
By T-slots.
By T-slots and mounting sets. The linear axis can be combined with any T-slot profile.
HTD with steel reinforcement, no backlash when changing direction.
Repeatability ± 0,1 mm.
In the standard version, the carriage runs on 4 runner blocks which can be serviced at a central servicing position. For longer carriages the number of runner blocks can be increased.
