DLZ
- Belt drive
- clean room
- Universal system
Function:

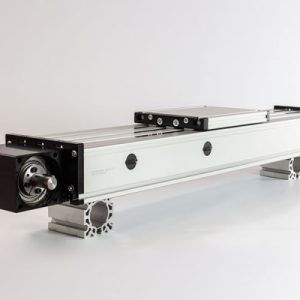

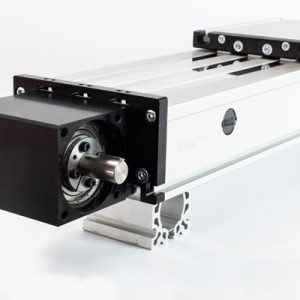

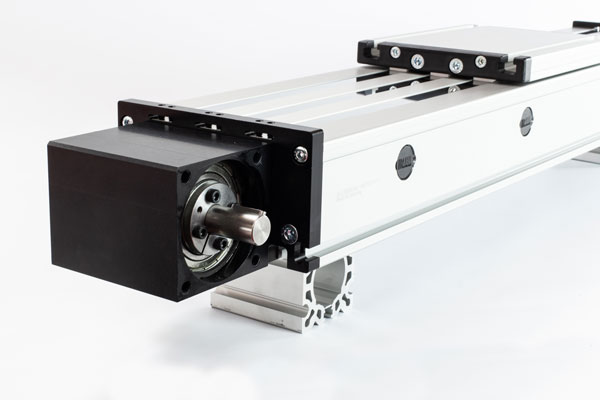

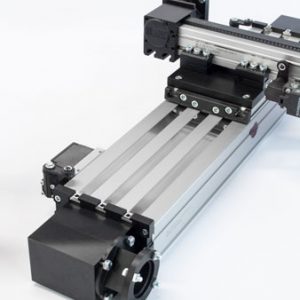

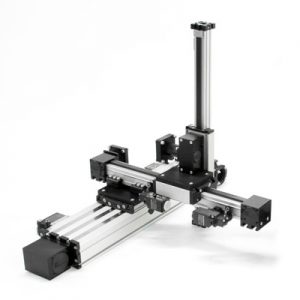

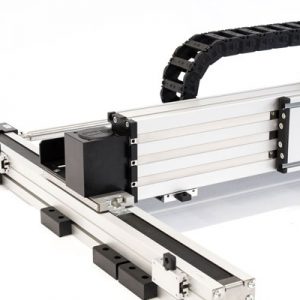

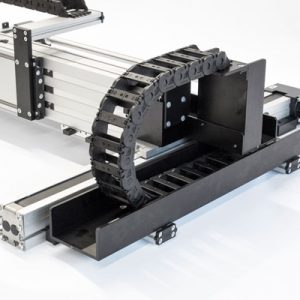

This unit consists of a rectangular aluminium profile with 2 integrated roller guides. The carriage is moved by a belt drive. Each standard pulley has got one coupling claw on one side. Belt tension can be readjusted by a simple screw adjustment device in the carriage. This device can also be used for symmetrical adjustment of two or more linear units running parallel. The openings of the guide body are sealed with 3 stainless steel cover bands to protect the guide from splash water and dust. Alternatively, it can also be supplied without cover bands. With this series, multi-part assembled units with long strokes can be realized.
This linear unit is suitable for application in clean rooms of clean-room classifications. For cleanroom documents, please contact our technical support.
As required, max. length 6.000 mm without joints.
By T-slots.
By T-slots and mounting sets. The linear axis can be combined with any T-slot profile.
HTD with steel reinforcement, no backlash when changing direction.
Repeatability ± 0,1 mm.
In the standard version, the carriage runs on 8 rollers which can be adjusted and serviced at a central servicing position. For longer carriages the number of rollers can be increased.
